温馨提醒：图片仅供参考，商品以实物为准

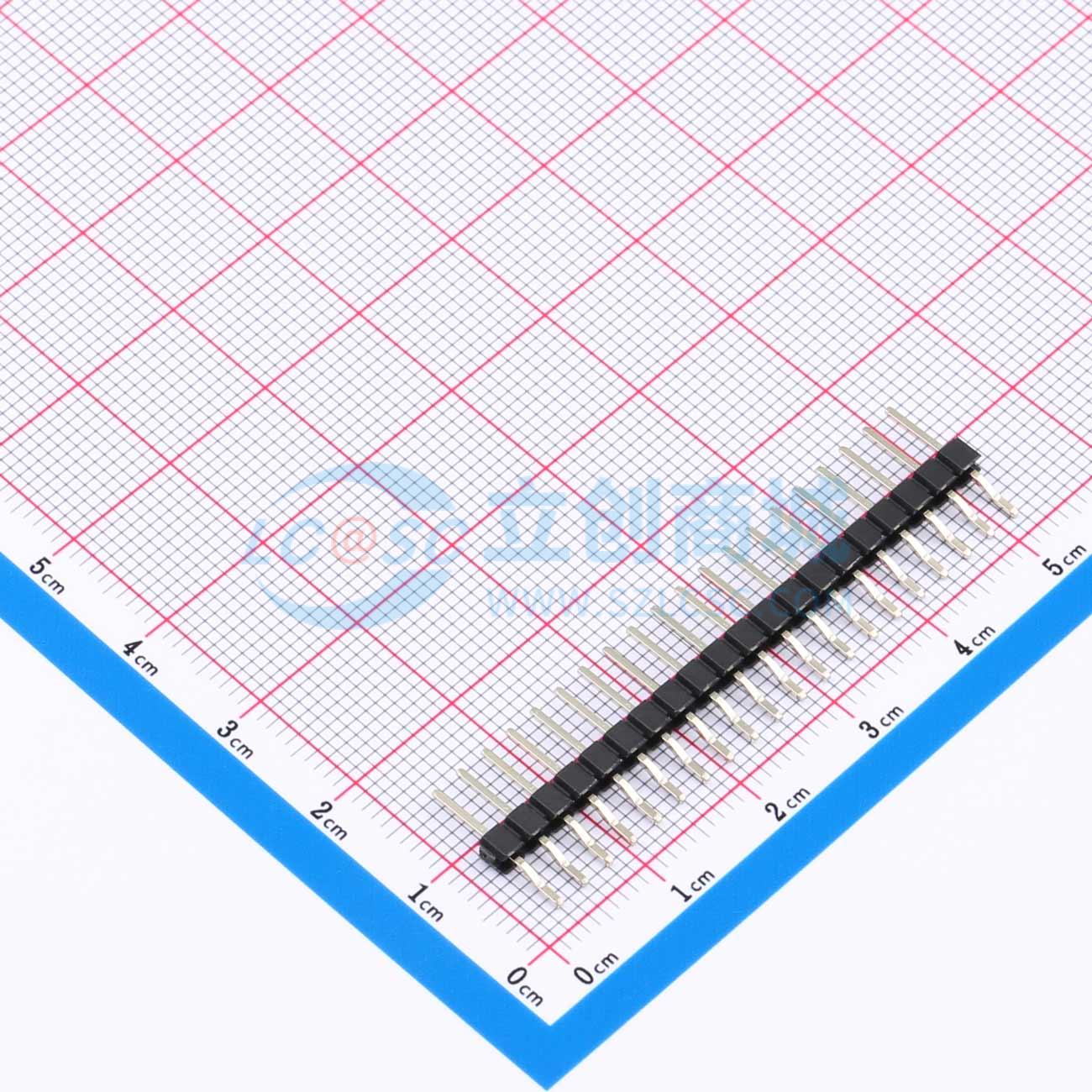

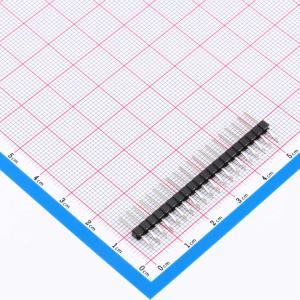

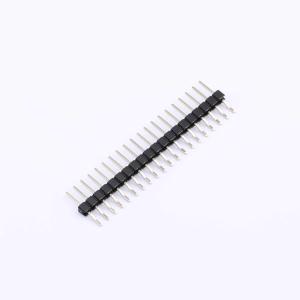

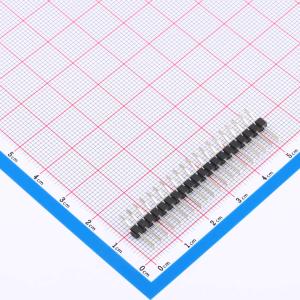

KH-2.54PH-1X20P-L13.5-WT
1x20P 间距:2.54mm 方针 卧贴
SMT扩展库SMT补贴嘉立创PCB免费打样
- 描述
- PC4.8 PA6.0 L13.5 6T 贴板长度2.3 常规
- 品牌名称
- kinghelm(金航标)
- 商品型号
- KH-2.54PH-1X20P-L13.5-WT
- 商品编号
- C20610229
- 商品封装
- SMD,P=2.54mm,卧贴
- 包装方式
- 袋装
- 商品毛重
- 1.333333克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 排针 | |
| 插针结构 | 1x20P | |
| 间距 | 2.54mm | |
| 圆针/方针 | 方针 | |
| 安装方式 | 卧贴 | |
| 排数 | 单排 | |
| 总PIN位数 | 20P |
| 属性 | 参数值 | |
|---|---|---|
| 额定电流 | 3A | |
| 配合针长度 | 6mm | |
| 塑高 | 2.5mm | |
| 触头材质 | 黄铜 | |
| 触头镀层 | 金 | |
| 工作温度 | -40℃~+105℃ | |
| 颜色 | 黑色 |
