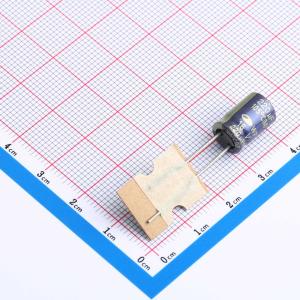

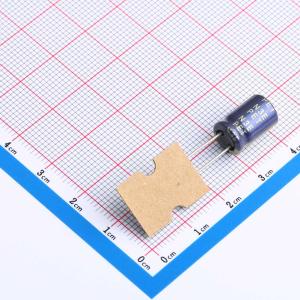

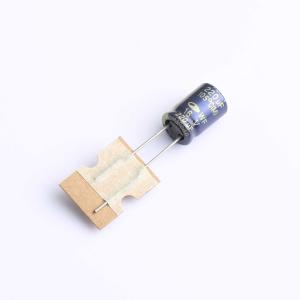

温馨提醒：图片仅供参考，商品以实物为准
WF1C227M0811MPF250
220uF ±20% 16V
SMT扩展库SMT补贴嘉立创PCB免费打样
- 描述
- 电解电容@@高频低阻长寿命产品（适应电表）；工作温度：-40℃~+105℃；工作寿命：5000~10000hrs
- 品牌名称
- SAMWHA(三和)
- 商品型号
- WF1C227M0811MPF250
- 商品编号
- C20539362
- 商品封装
- 插件,D8xL11mm
- 包装方式
- 编带
- 商品毛重
- 1.231克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 直插铝电解电容 | |
| 容值 | 220uF | |
| 精度 | ±20% | |
| 额定电压 | 16V | |
| 纹波电流 | 400mA@100kHz |
| 属性 | 参数值 | |
|---|---|---|
| 等效串联电阻(ESR) | 250mΩ@100kHz | |
| 电容体直径 | 8mm | |
| 电容体长度 | 11.5mm | |
| 工作温度 | -40℃~+105℃ |
