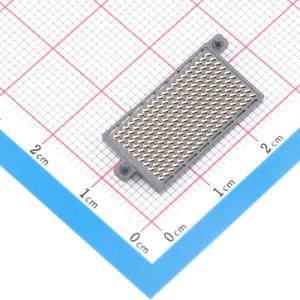

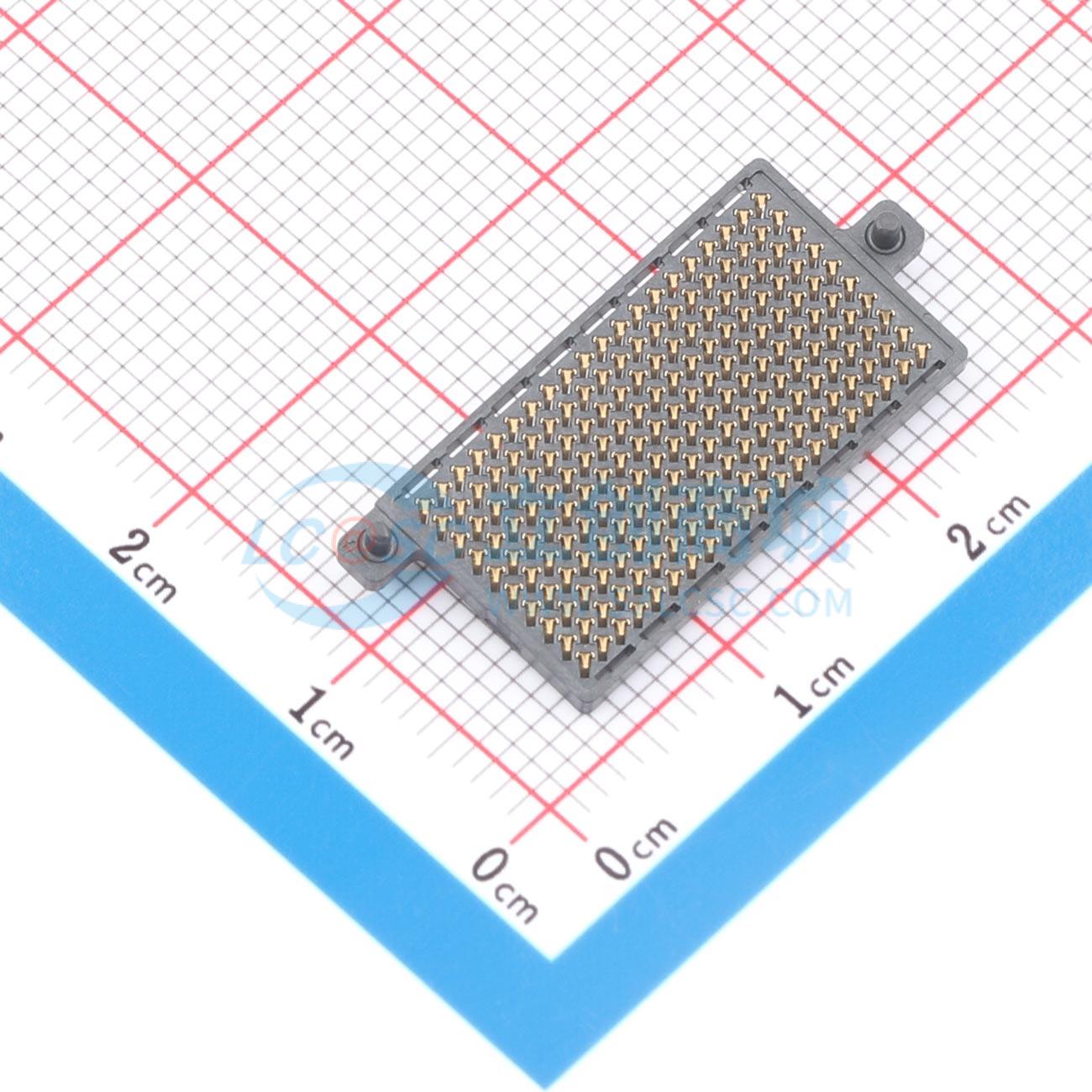

GMI-20-2-1.27-G-10
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 板对板与背板连接器 | |
| PIN总数 | 200P | |
| 间距 | 1mm |
| 属性 | 参数值 | |
|---|---|---|
| 排数 | 10 | |
| 触头材质 | 铜合金 |
商品概述
GMI组件 图纸编号：GMI - XX - X - XX - XX - XX 作者：VICKY Z 日期：2014年2月7日 第3页，共3页
