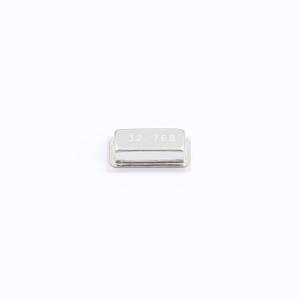

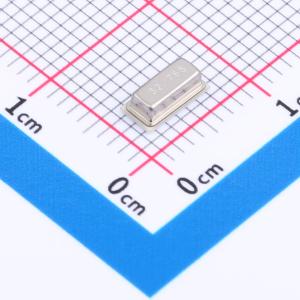

温馨提醒：图片仅供参考，商品以实物为准
SCPYS32X76800YERN
32.768kHz ±20ppm 12.5pF
SMT扩展库SMT补贴嘉立创PCB免费打样
私有库下单最高享92折
- 描述
- 存储温度范围：-55℃~+125℃
- 品牌名称
- SOSET(索斯特)
- 商品型号
- SCPYS32X76800YERN
- 商品编号
- C20200125
- 商品封装
- HC-49S-SMD
- 包装方式
- 编带
- 商品毛重
- 0.160333克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 无源晶振 | |
| 频率 | 32.768kHz | |
| 常温频差 | ±20ppm |
| 属性 | 参数值 | |
|---|---|---|
| 负载电容 | 12.5pF | |
| 频率稳定度 | ±30ppm | |
| 工作温度 | -40℃~+85℃ |
商品特性
- Nominal frequency: 32.768 KHz
- Package type: SMD 3060
- Operating temperature range: -40 to +85°C
- Storage temperature: -55 to +125°C
- Storage humidity: 10% to 90%
- Frequency tolerance: ±20 PPM at 25°C±3°C
- Turnover temperature: 25°C±5°C
- Second-order temperature coefficient: -0.035±0.008 ppm/°C
- Load capacitance: 12.5 pF
- Drive level: 1 W Max
- Equivalent resistance: 70 kΩ Max
- Shunt capacitance: <2.0 pF
- Insulation resistance: 500 MΩ Min at 100 VDC/+15 VDC
- Aging rate: ±2 PPM/Year
