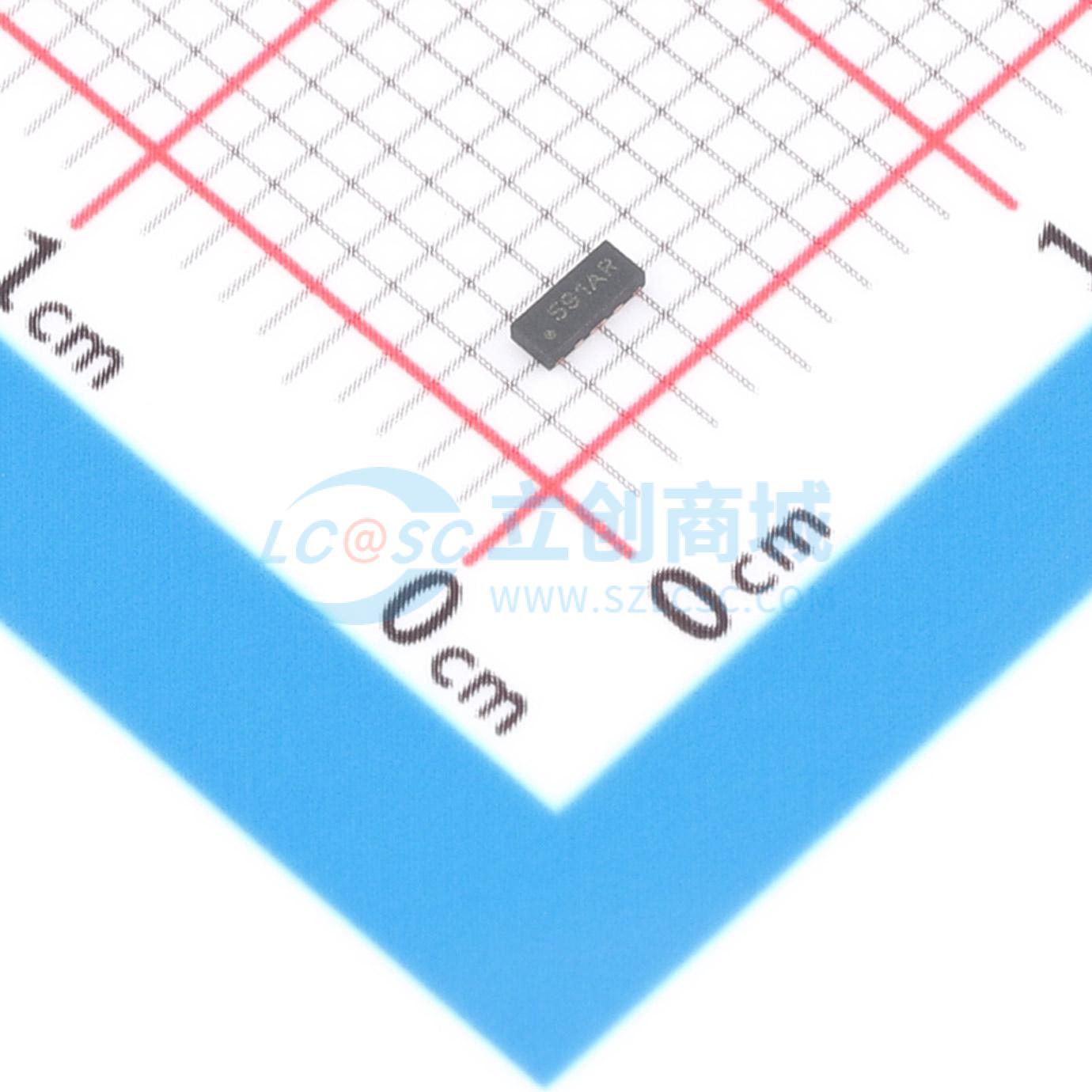

温馨提醒：图片仅供参考，商品以实物为准
ESD224DQAR
双向ESD 3.6V截止 峰值浪涌电流：2A@8/20us
- 描述
- ESD224 适用于 USB 和 HDMI 的四通道 0.5pF、±3.6V、±12kV ESD 保护二极管
- 品牌名称
- TI(德州仪器)
- 商品型号
- ESD224DQAR
- 商品编号
- C1981316
- 商品封装
- USON-10(1x2.5)
- 包装方式
- 编带
- 商品毛重
- 0.001克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 静电和浪涌保护(TVS/ESD) | |
| 极性 | 双向 | |
| 反向截止电压(Vrwm) | 3.6V | |
| 钳位电压 | 14V | |
| 峰值脉冲电流(Ipp) | 2A@8/20us | |
| 峰值脉冲功率(Ppp) | 17W@8/20us | |
| 击穿电压 | 7.9V |
| 属性 | 参数值 | |
|---|---|---|
| 反向电流(Ir) | 100pA | |
| 通道数 | 四路 | |
| 工作温度 | -40℃~+125℃ | |
| 防护等级 | IEC 61000-4-2 | |
| 类型 | ESD | |
| Cj-结电容 | 0.5pF |
商品概述
The ESD224 is a bidirectional TVS ESD protection diode array suitable for high-speed applications such as USB 3.0 and HDMI 2.0. The ESD224's rated ESD shock dissipation value reaches the highest level specified in the IEC61000 - 4 - 2 (Level 4) international standard. The ESD224 uses on-chip differentially matched series components to improve the downstream ESD clamping performance while maintaining the signal compliance of high-speed interfaces. The on-chip ESD protection network of the ESD224 provides ultra-low clamping performance and high differential bandwidth, enabling the device to meet the HDMI2.0 standard and providing robust protection for downstream HDMI devices. The ESD224 is available in the industry-standard USON - 10(DQA) package. This package features a 0.5mm lead pitch, which simplifies implementation and shortens design time.
商品特性
- IEC61000 - 4 - 2 Level 4 electrostatic discharge (ESD) protection
- ±12kV contact discharge
- ±15kV air-gap discharge
- IEC61000 - 4 - 4 electrical fast transient (EFT) protection
- 80A (5/50ns)
- IEC61000 - 4 - 5 surge protection
- 2A (8/20μs)
- IO capacitance:
- 0.5pF (typical)
- Compliant with HDMI2.0 standard
- Ultra-low leakage current: 0.1nA (typical)
- Ultra-low ESD clamping voltage: 8V (system side) at 16A TLP
- Supports high-speed interfaces with rates up to 6Gbps
- Industrial temperature range: -40°C to +125°C
- Industry-standard DQA package
应用领域
- End devices
- Set-top boxes
- TVs and monitors
- Portable and desktop computers
- DVD, Blu-ray, and multimedia players
- Interfaces
- HDMI 2.0/1.4
- Ethernet 10/100/1000Mbps
- USB 3.0
