温馨提醒：图片仅供参考，商品以实物为准

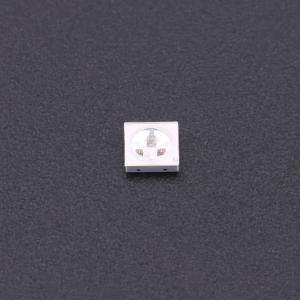

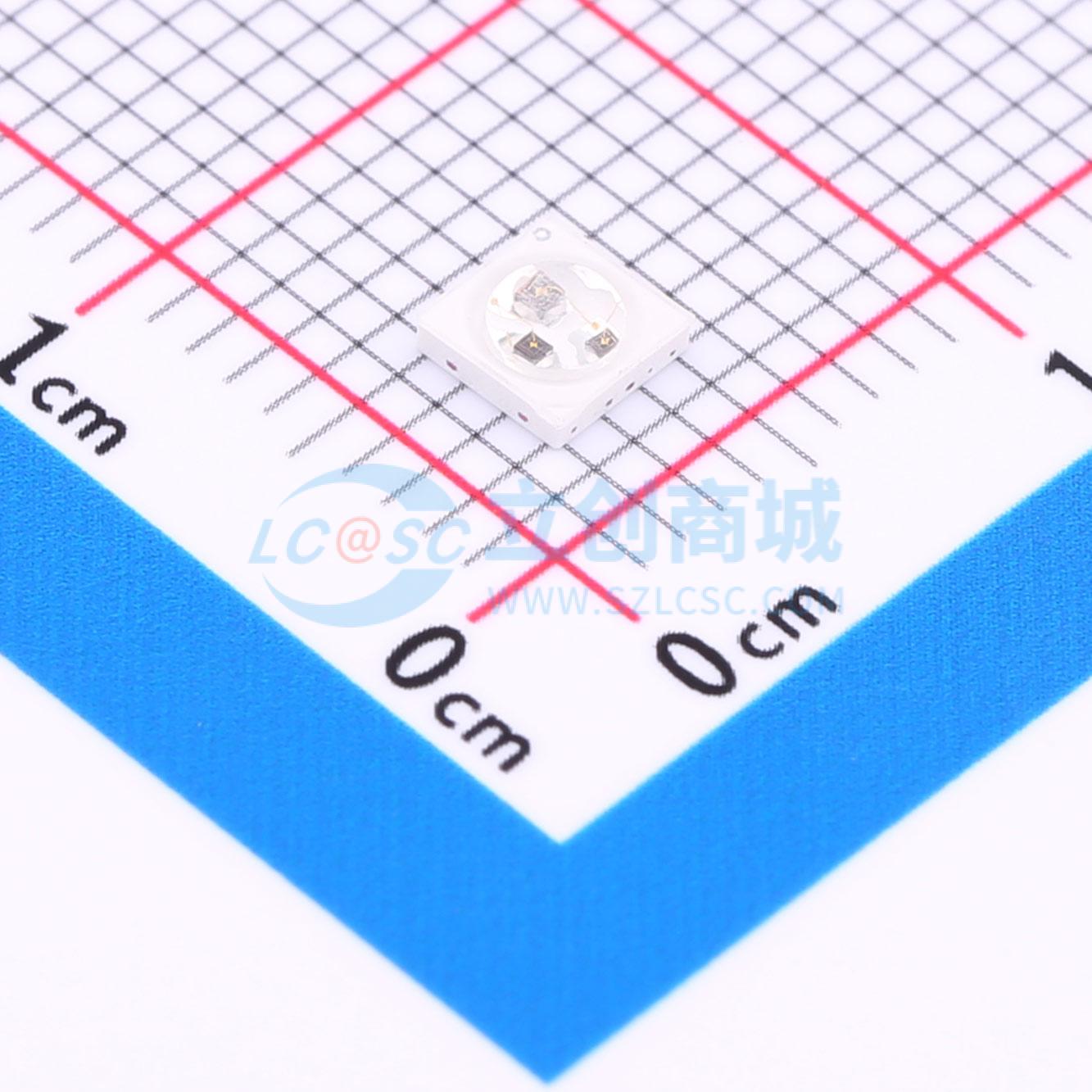

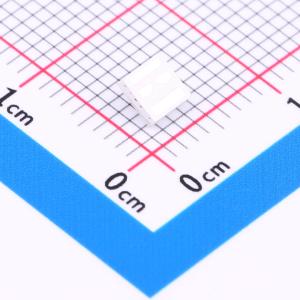

JNJ-3535E3X30101361
3535EMC三芯20mil-D球头120度灯源845-860nm
SMT扩展库PCB免费打样
私有库下单最高享92折
- 描述
- 发光二极管/LED 3535封装三芯贴片灯珠
- 品牌名称
- JNJOPTO(强生光电)
- 商品型号
- JNJ-3535E3X30101361
- 商品编号
- C19185861
- 商品封装
- SMD3535-3P
- 包装方式
- 编带
- 商品毛重
- 0.1137克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 红外发射管 | |
| 正向压降(Vf) | 4.2V；5.6V | |
| 波长 | 850nm | |
| 辐射强度(Ie) | 45mW/sr@IF=350mA | |
| 正向电流(If) | 350mA |
| 属性 | 参数值 | |
|---|---|---|
| 直流反向耐压(Vr) | 5V | |
| 视角 | 120° | |
| 工作温度 | -40℃~+100℃ | |
| 半波宽 | 40nm |
