温馨提醒：图片仅供参考，商品以实物为准

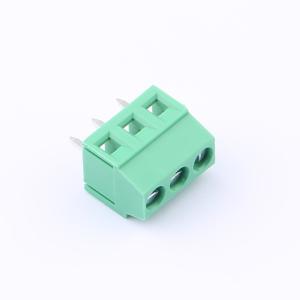

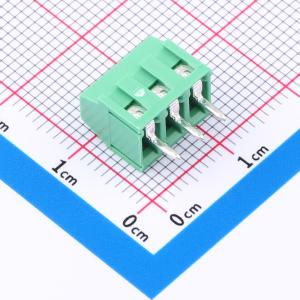

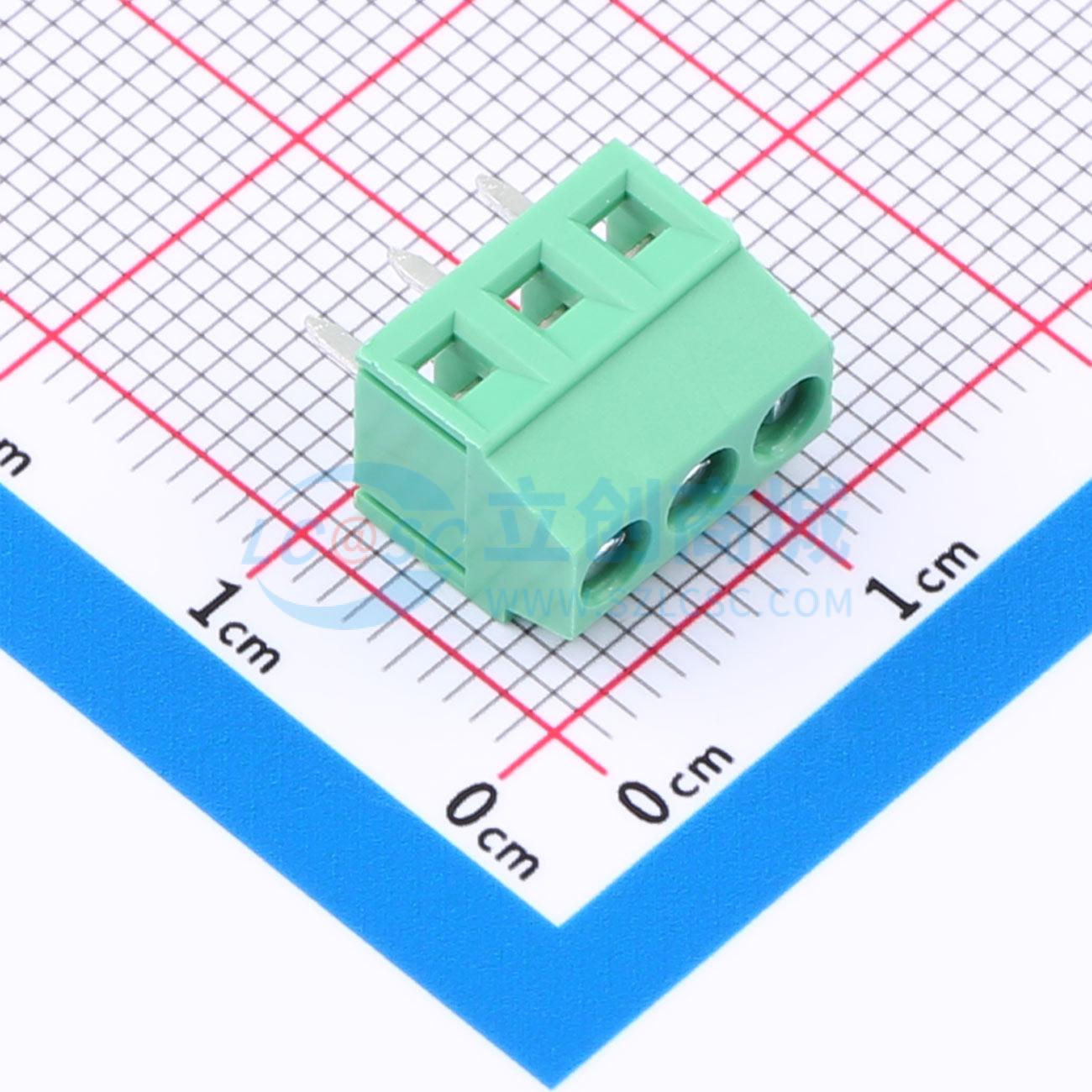

MX128L-3.5-03P-GN01-Cu-Y-A
1x3P 3.5mm 直插 排数:1 每排P数:3
- 品牌名称
- MAX(迈旭)
- 商品型号
- MX128L-3.5-03P-GN01-Cu-Y-A
- 商品编号
- C19184582
- 商品封装
- 插件,P=3.5mm
- 包装方式
- 袋装
- 商品毛重
- 1.4332克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 螺钉式接线端子 | |
| 结构 | 1x3P | |
| 间距 | 3.5mm | |
| 颜色 | 绿色 | |
| 安装方式 | 直插 | |
| 总PIN数 | 3P | |
| 排数 | 1 |
| 属性 | 参数值 | |
|---|---|---|
| 每排PIN数 | 3 | |
| 螺钉规格 | M2 | |
| 额定电流 | 10A | |
| 额定电压 | 150V | |
| 线规 - AWG | 16~26 | |
| 工作温度 | -40℃~+105℃ |
