- 引脚图
- 焊盘图
温馨提醒：图片仅供参考，商品以实物为准

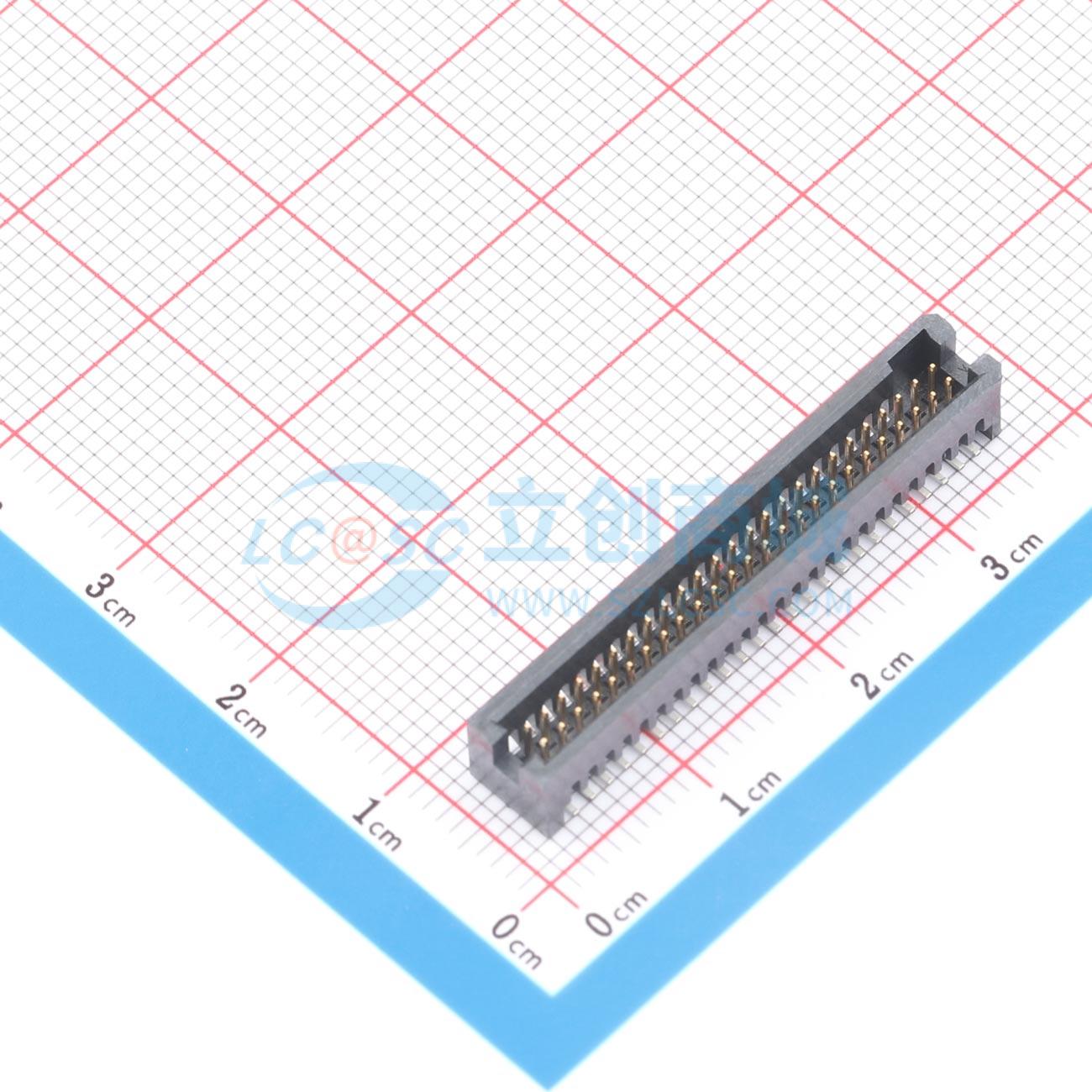

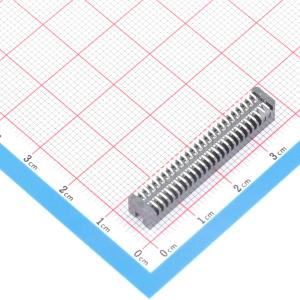

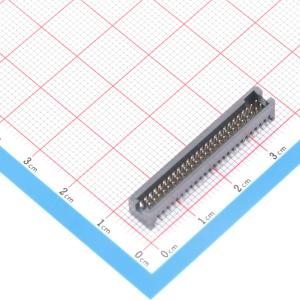

TFM-125-02-L-D
2x25P 间距:1.27mm 立贴
SMT扩展库PCB免费打样
私有库下单最高享92折
- 品牌名称
- SAMTEC
- 商品型号
- TFM-125-02-L-D
- 商品编号
- C17696095
- 商品封装
- SMD,P=1.27mm
- 包装方式
- 管装
- 商品毛重
- 1克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 线对板针座 | |
| 插针结构 | 2x25P | |
| 间距 | 1.27mm | |
| 安装方式 | 立贴 | |
| 总PIN数 | 50P | |
| 排数 | 2 | |
| 每排PIN数 | 25 | |
| 行距 | 1.27mm |
| 属性 | 参数值 | |
|---|---|---|
| 额定电流 | 3.2A | |
| 触头材质 | 磷青铜 | |
| 工作温度 | -55℃~+125℃ | |
| 额定电压 | 250V | |
| 塑料材质 | LCP | |
| 颜色 | 黑色 | |
| Z轴-板上高度 | 5.72mm | |
| Y轴-板上底边宽度 | 5.72mm |
