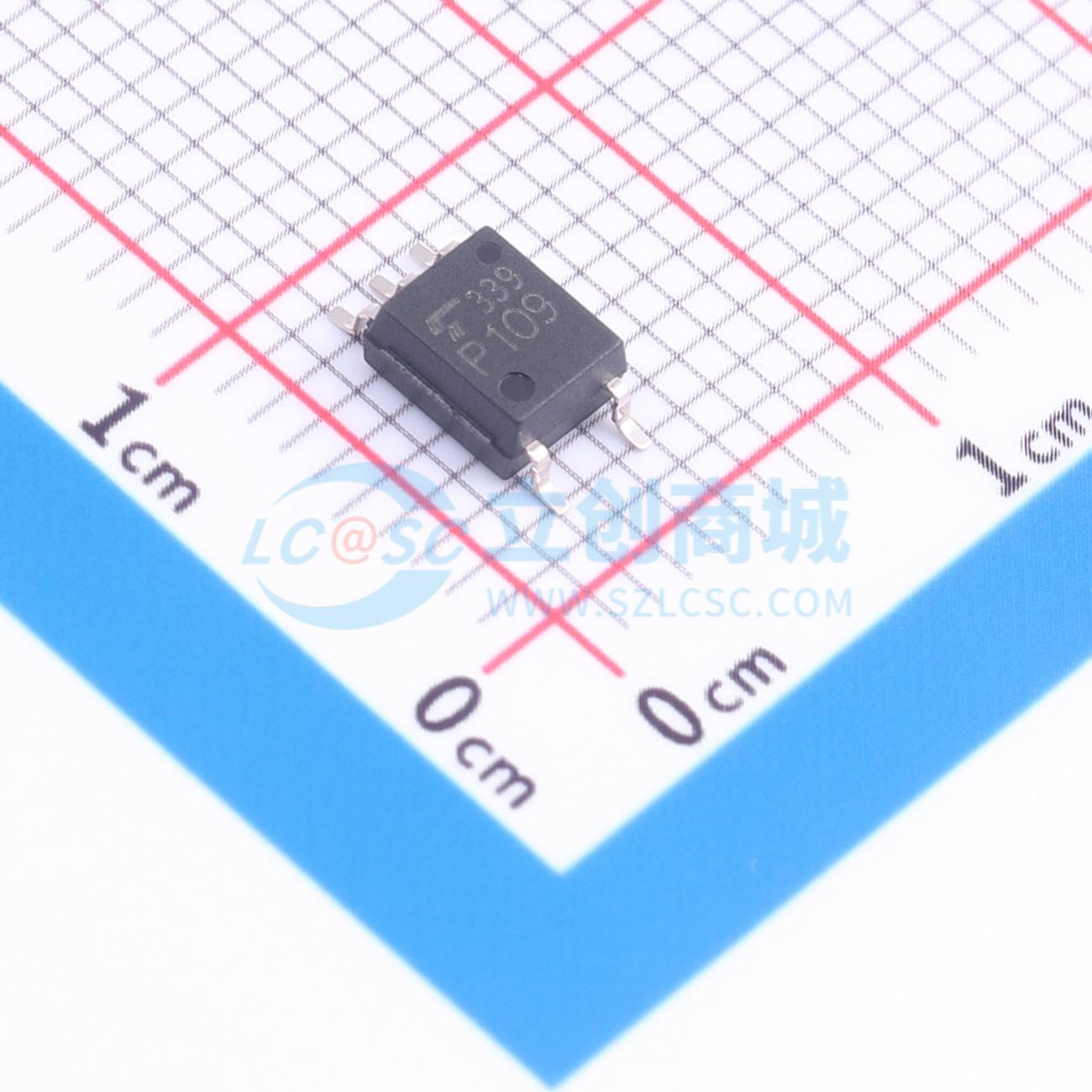

温馨提醒：图片仅供参考，商品以实物为准

TLP109(TPR,E)

SMT扩展库SMT补贴嘉立创PCB免费打样

商品参数

Isolation voltage: 3750 Vrms (min)
Common-mode transient immunity: 10 kV/µs (min) @VCM = 1500 Vp-p
Propagation delay time tPHL/tPLH = 0.1 µs (min) = 0.8 µs (max) @IF = 10 mA, VCC = 15 V, RL = 20 kΩ, Ta = 25 °C
Pulse width distortion: 0.7 µs (max) (|tPHL - tPLH|)
TTL compatible
Safety standards UL-recognized: UL 1577, File No.E67349 cUL-recognized: CSA Component Acceptance Service No.5A File No.E67349 VDE-approved: EN 60747-5-5, EN 62368-1 CQC-approved: GB4943.1, GB8898 Thailand Factory 仅适用干海拔 2000 m 以下地区安全使用
