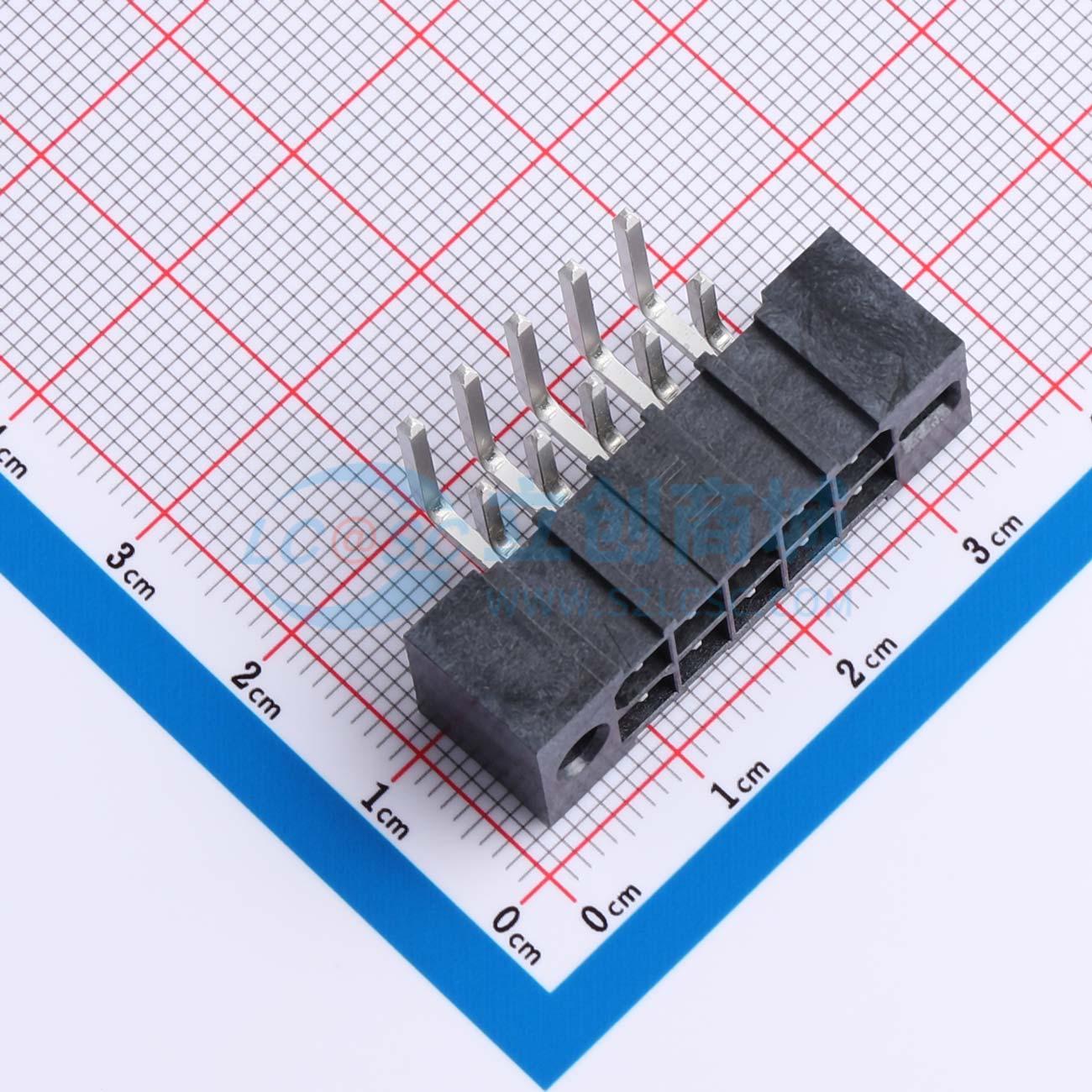

温馨提醒：图片仅供参考，商品以实物为准

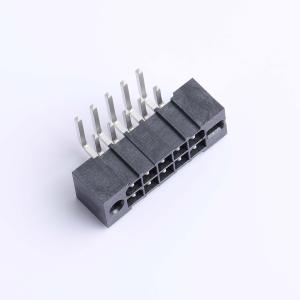

IPBT-105-H1-T-D-RA-GP
2x5P 间距:4.19mm 弯插
SMT扩展库PCB免费打样
私有库下单最高享92折
- 品牌名称
- SAMTEC
- 商品型号
- IPBT-105-H1-T-D-RA-GP
- 商品编号
- C17617277
- 商品封装
- 弯插
- 包装方式
- 管装
- 商品毛重
- 9.064克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 线对板针座 | |
| 插针结构 | 2x5P | |
| 间距 | 4.19mm | |
| 安装方式 | 弯插 | |
| 总PIN数 | 10P | |
| 排数 | 2 | |
| 每排PIN数 | 5 | |
| 行距 | 4.2mm |
| 属性 | 参数值 | |
|---|---|---|
| 额定电流 | 10.3A | |
| 触头材质 | 铜合金 | |
| 触头镀层 | 锡 | |
| 工作温度 | -55℃~+105℃ | |
| 额定电压 | 565V | |
| 颜色 | 黑色 | |
| Z轴-板上高度 | 10.77mm | |
| X轴-板上底边长度(间距线) | 33.22mm |
