温馨提醒：图片仅供参考，商品以实物为准

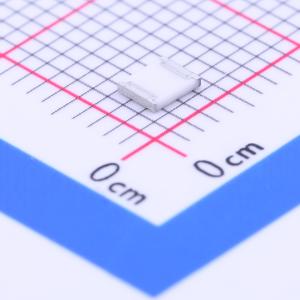

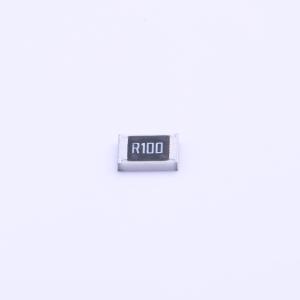

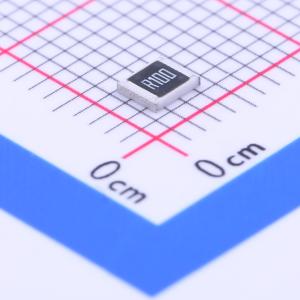

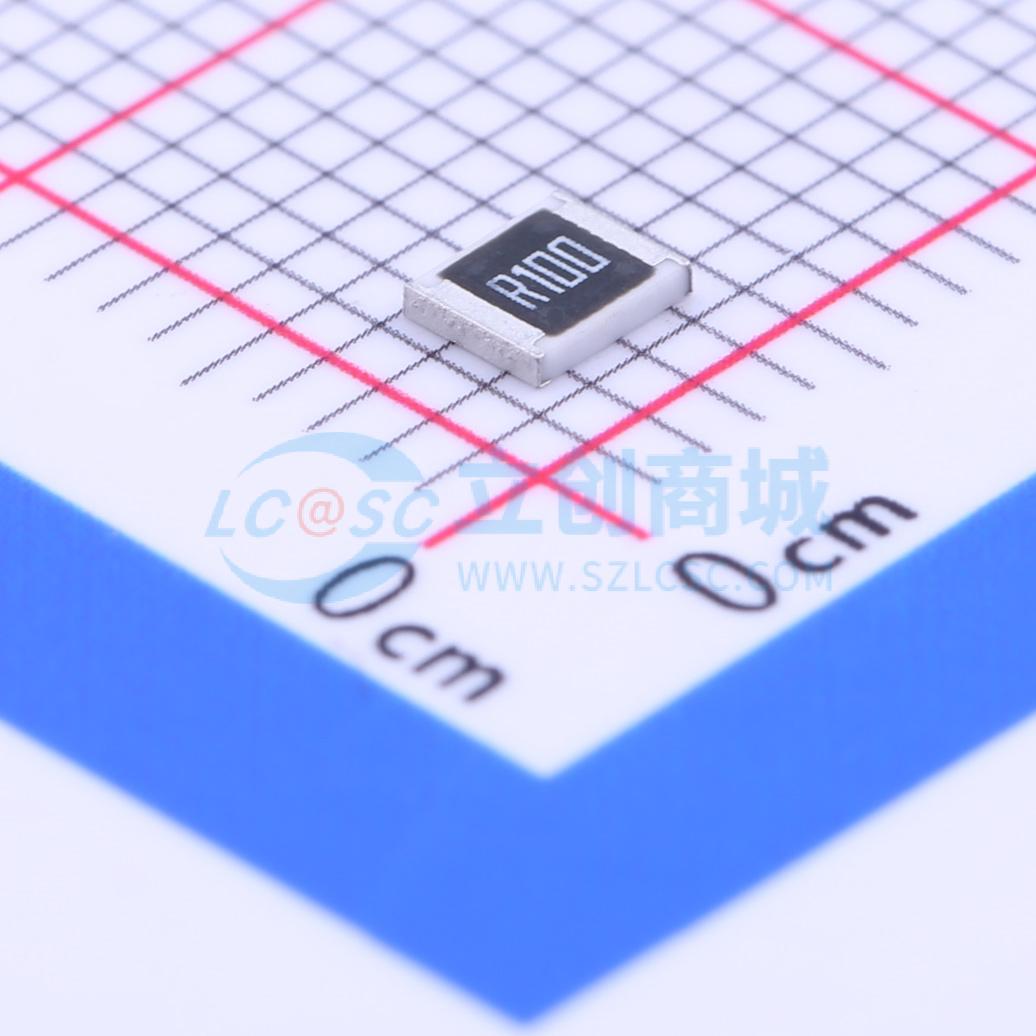

CR1210FR100P05R
厚膜电阻 100mΩ ±1% 500mW
SMT扩展库SMT补贴嘉立创PCB免费打样
- 描述
- 特性：小尺寸和轻重量。降低组装成本并与贴片机匹配。可靠性高、质量好且交货快。应用：娱乐:立体声、电视调谐器、磁带录音机。家电:空调、冰箱
- 品牌名称
- EVER OHMS(天二科技)
- 商品型号
- CR1210FR100P05R
- 商品编号
- C175868
- 商品封装
- 1210
- 包装方式
- 编带
- 商品毛重
- 0.037克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 贴片电阻 | |
| 电阻类型 | 厚膜电阻 | |
| 阻值 | 100mΩ | |
| 精度 | ±1% |
| 属性 | 参数值 | |
|---|---|---|
| 功率 | 500mW | |
| 温度系数 | ±600ppm/℃ | |
| 工作温度 | -55℃~+155℃ |
