- 引脚图
- 焊盘图
温馨提醒：图片仅供参考，商品以实物为准

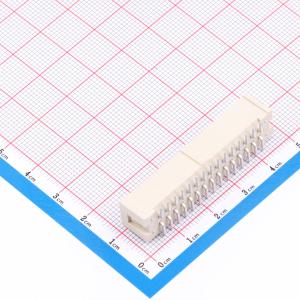

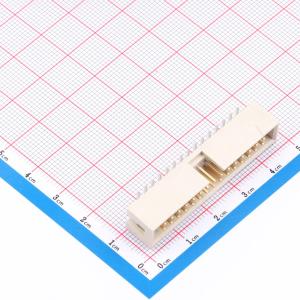

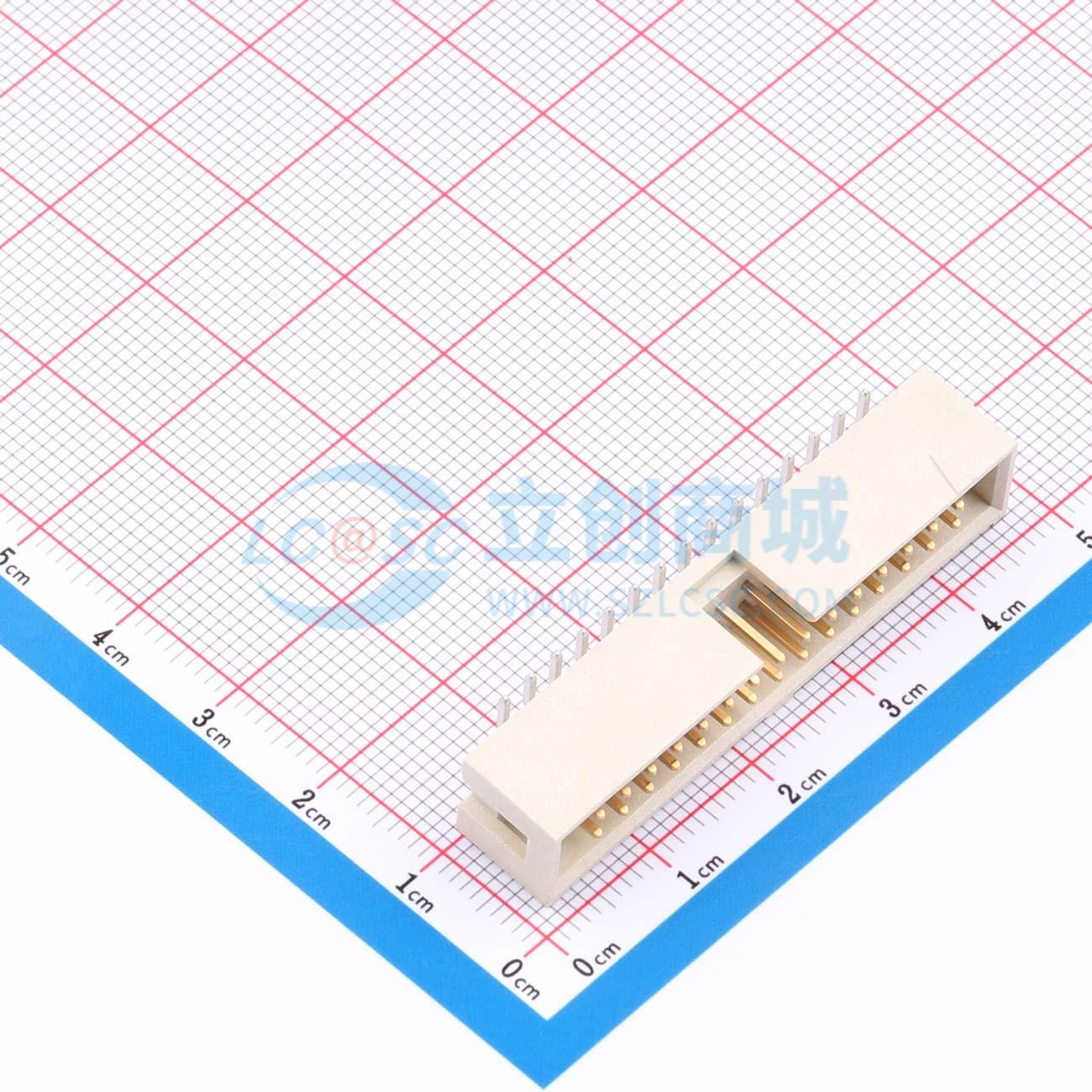

HTST-115-01-L-DV
2x15P 间距:2.54mm 立贴
SMT扩展库PCB免费打样
私有库下单最高享92折
- 品牌名称
- SAMTEC
- 商品型号
- HTST-115-01-L-DV
- 商品编号
- C17494552
- 商品封装
- SMD
- 包装方式
- 管装
- 商品毛重
- 7.433333克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 线对板针座 | |
| 插针结构 | 2x15P | |
| 间距 | 2.54mm | |
| 安装方式 | 立贴 | |
| 总PIN数 | 30P | |
| 排数 | 2 | |
| 每排PIN数 | 15 |
| 属性 | 参数值 | |
|---|---|---|
| 行距 | 2.54mm | |
| 额定电流 | 3.4A | |
| 触头材质 | 磷青铜 | |
| 触头镀层 | 锡 | |
| 工作温度 | -55℃~+125℃ | |
| 阻燃等级 | UL94V-0 |
商品概述
高温顶部护罩
