温馨提醒：图片仅供参考，商品以实物为准

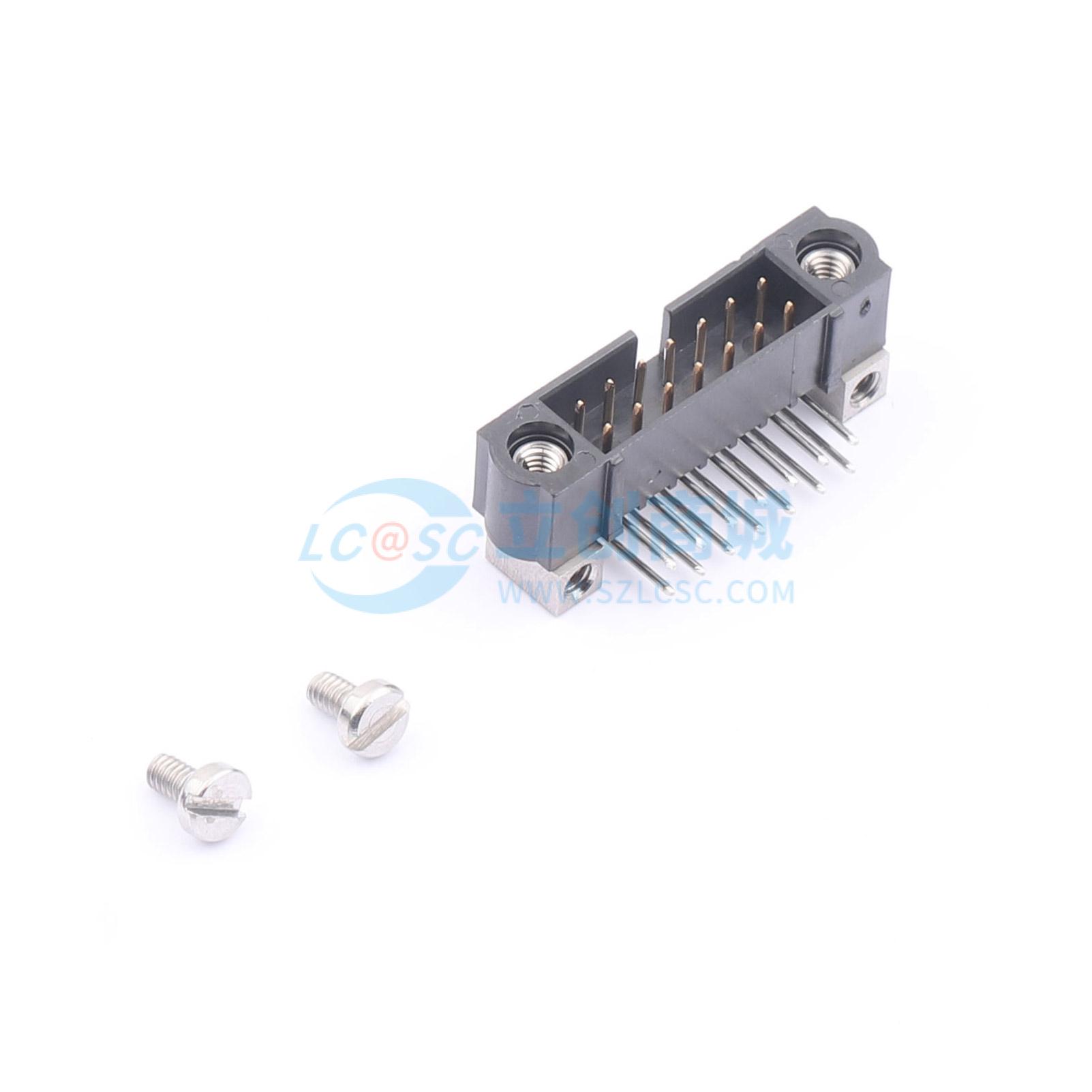

M80-5401442
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 线对板针座 | |
| 插针结构 | 2x7P | |
| 间距 | 2mm | |
| 安装方式 | 弯插 | |
| 总PIN数 | 14P | |
| 排数 | 2 | |
| 每排PIN数 | 7 |
| 属性 | 参数值 | |
|---|---|---|
| 行距 | 2mm | |
| 额定电流 | 3A | |
| 触头材质 | 磷青铜 | |
| 触头镀层 | 锡 | |
| 工作温度 | -55℃~+125℃ | |
| 额定电压 | 800V |
