温馨提醒：图片仅供参考，商品以实物为准

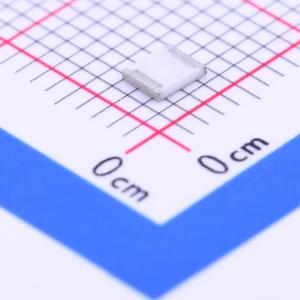

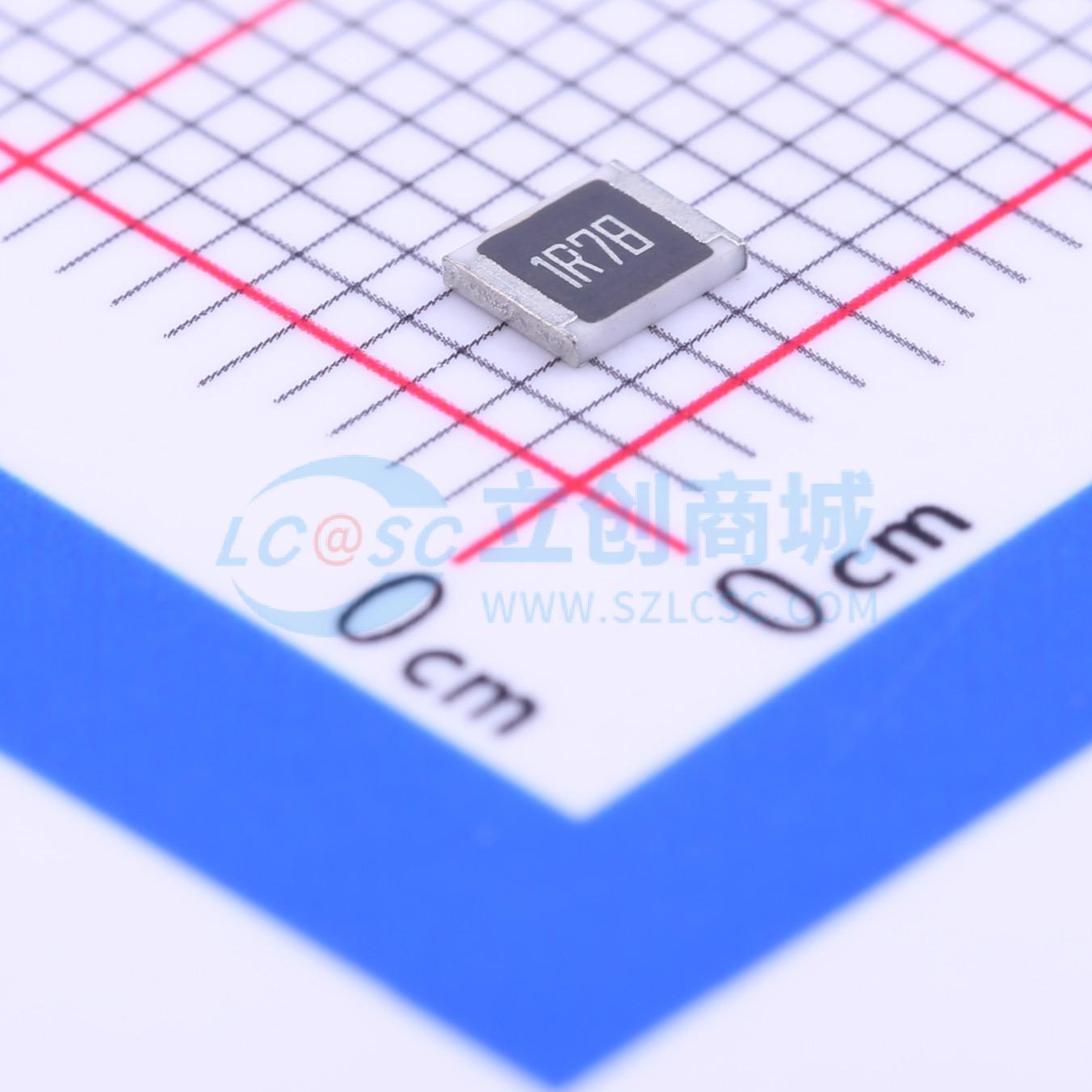

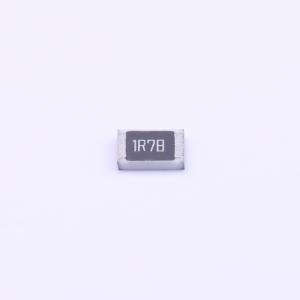

CRH1210F1R78P05Z
厚膜电阻 1.78Ω ±1% 660mW
SMT扩展库SMT补贴嘉立创PCB免费打样
- 描述
- 特性：小尺寸。重量轻。可靠性高。质量高。应用：消费电器 家用电器:空调、冰箱。计算机及相关产品:主板
- 品牌名称
- EVER OHMS(天二科技)
- 商品型号
- CRH1210F1R78P05Z
- 商品编号
- C174387
- 商品封装
- 1210
- 包装方式
- 编带
- 商品毛重
- 0.037克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 贴片电阻 | |
| 电阻类型 | 厚膜电阻 | |
| 阻值 | 1.78Ω | |
| 精度 | ±1% |
| 属性 | 参数值 | |
|---|---|---|
| 功率 | 660mW | |
| 工作电压 | 200V | |
| 温度系数 | ±400ppm/℃ | |
| 工作温度 | -55℃~+155℃ |
