温馨提醒：图片仅供参考，商品以实物为准

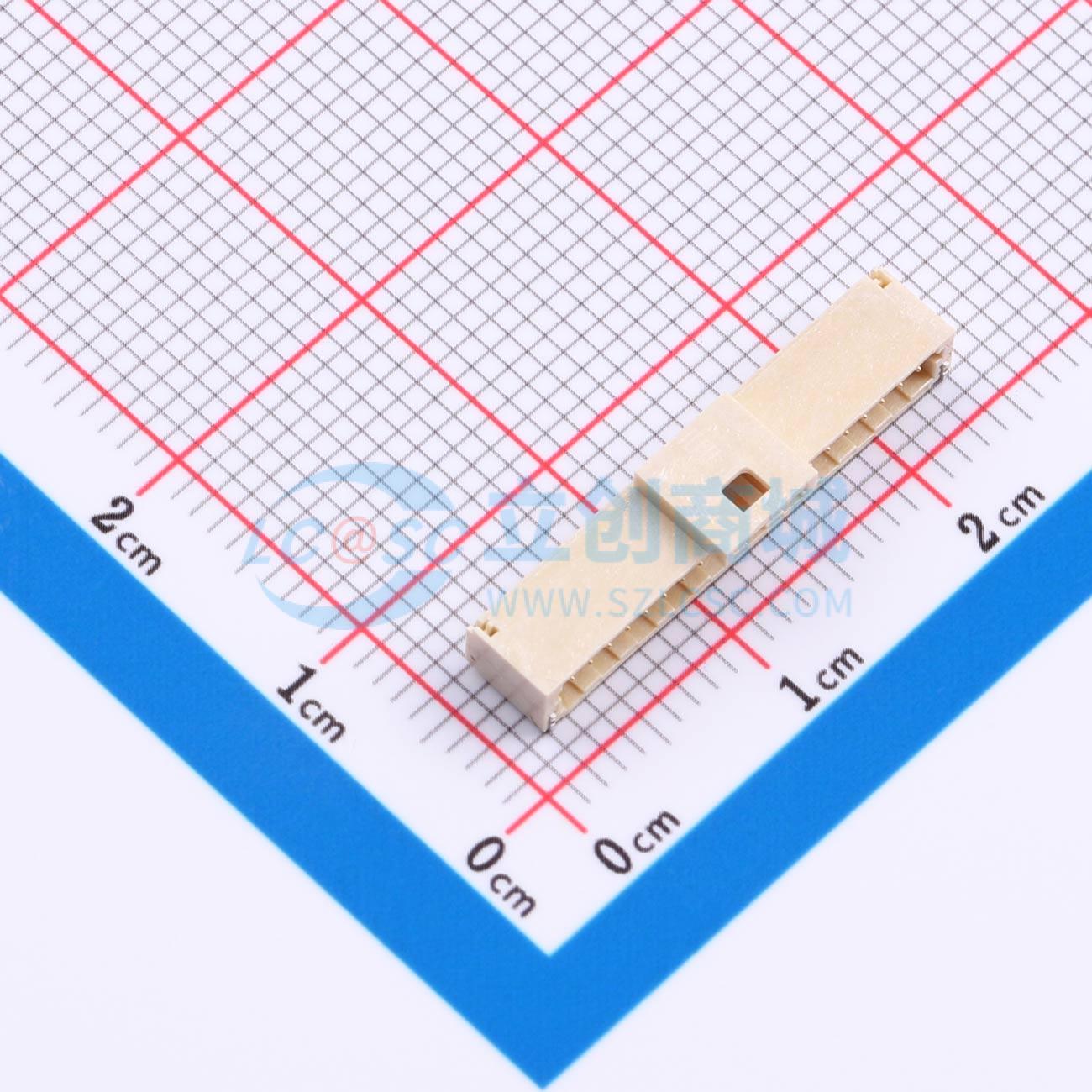

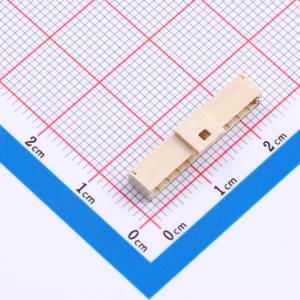

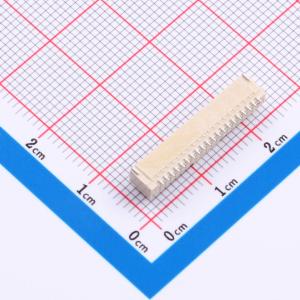

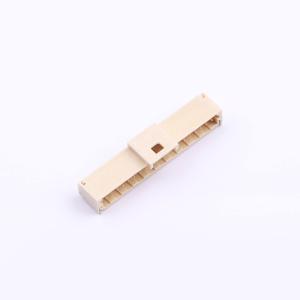

T1M-20-F-SH-L
1x20P 间距:1mm 卧贴
SMT扩展库PCB免费打样
私有库下单最高享92折
- 品牌名称
- SAMTEC
- 商品型号
- T1M-20-F-SH-L
- 商品编号
- C17351581
- 商品封装
- SMD,P=1mm,卧贴
- 包装方式
- 编带
- 商品毛重
- 0.91克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 线对板针座 | |
| 插针结构 | 1x20P | |
| 间距 | 1mm | |
| 安装方式 | 卧贴 | |
| 总PIN数 | 20P | |
| 排数 | 1 | |
| 每排PIN数 | 20 |
| 属性 | 参数值 | |
|---|---|---|
| 触头材质 | 磷青铜 | |
| 触头镀层 | 金 | |
| 塑料材质 | LCP | |
| 阻燃等级 | UL94V-0 | |
| Z轴-板上高度 | 4.6mm | |
| X轴-板上底边长度(间距线) | 22.4mm | |
| Y轴-板上底边宽度 | 5.2mm |
商品概述
1毫米单排离散电线插头
