温馨提醒：图片仅供参考，商品以实物为准

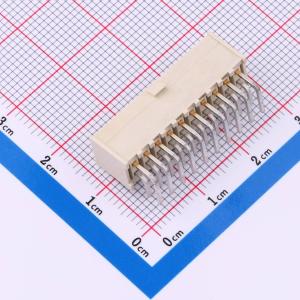

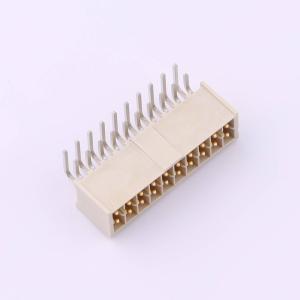

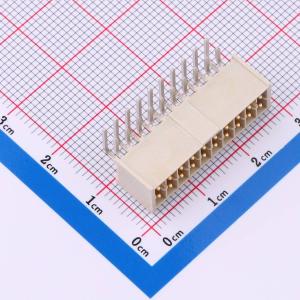

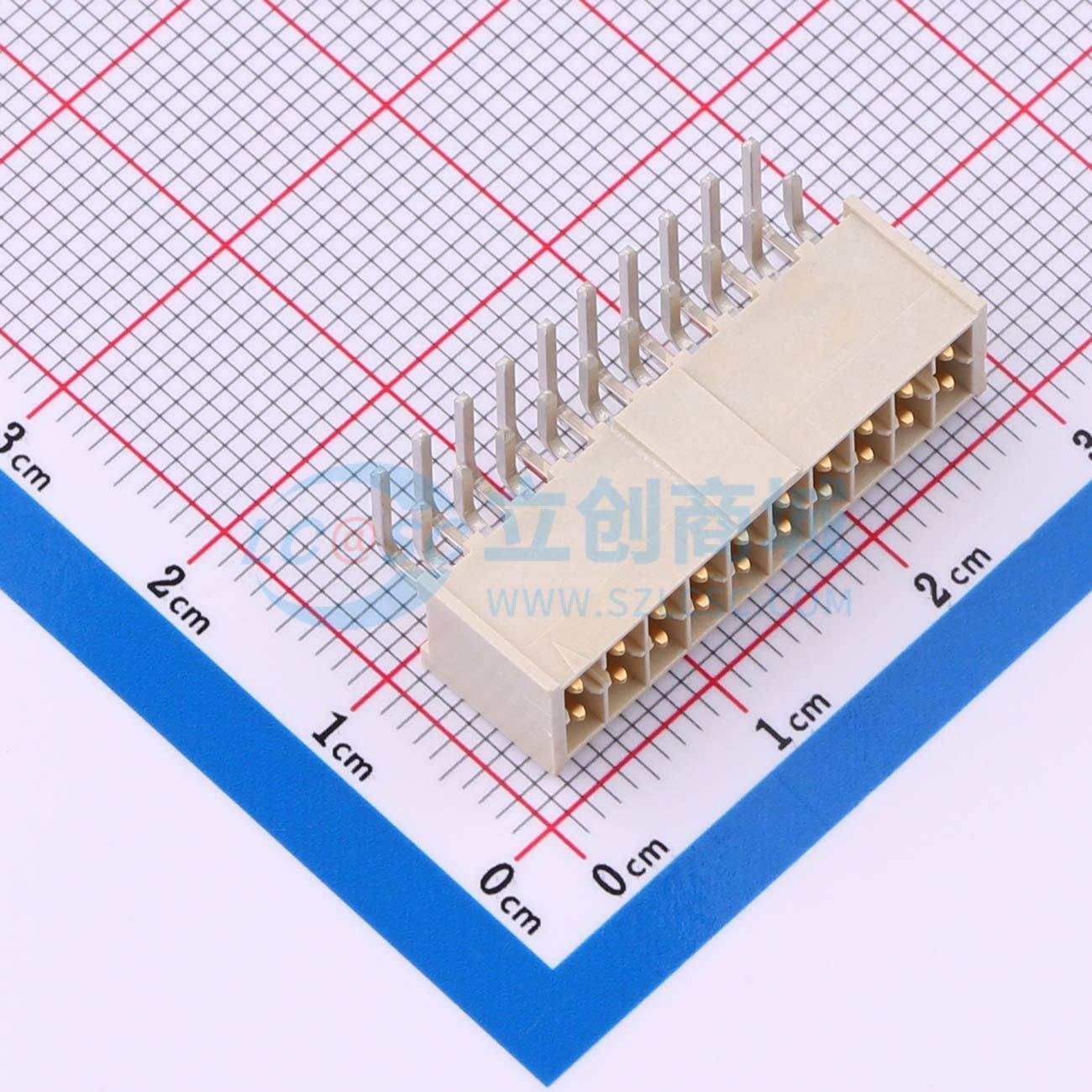

IPL1-110-01-L-D-RA-K
2x10P 间距:2.54mm 弯插
SMT扩展库PCB免费打样
私有库下单最高享92折
- 品牌名称
- SAMTEC
- 商品型号
- IPL1-110-01-L-D-RA-K
- 商品编号
- C17185201
- 商品封装
- 插件
- 包装方式
- 管装
- 商品毛重
- 3.9克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 线对板针座 | |
| 插针结构 | 2x10P | |
| 间距 | 2.54mm | |
| 安装方式 | 弯插 | |
| 总PIN数 | 20P | |
| 排数 | 2 | |
| 每排PIN数 | 10 |
| 属性 | 参数值 | |
|---|---|---|
| 行距 | 2.54mm | |
| 触头材质 | 磷青铜 | |
| 触头镀层 | 锡 | |
| 工作温度 | -55℃~+125℃ | |
| 额定电压 | 954V；675V | |
| 塑料材质 | LCP | |
| 阻燃等级 | UL94V-0 |
