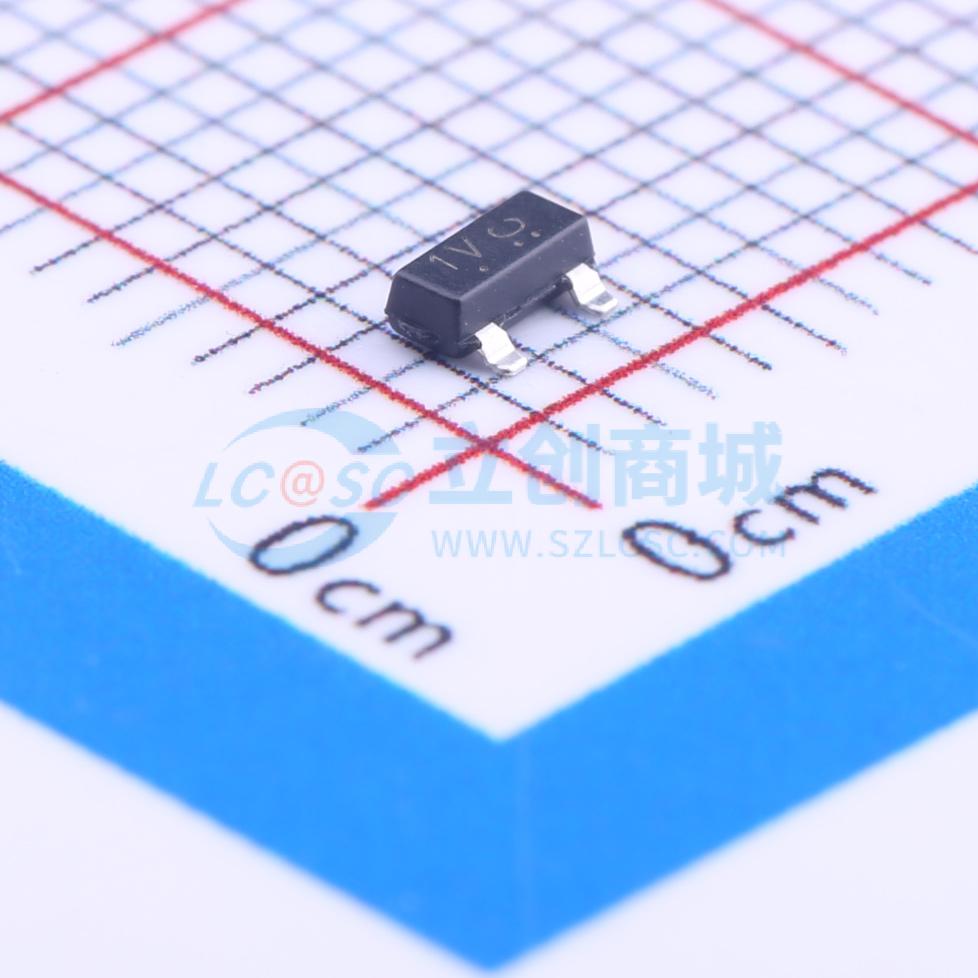

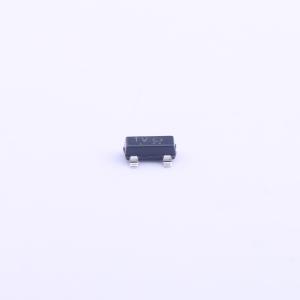

温馨提醒：图片仅供参考，商品以实物为准
LMBT6427LT1G
NPN 电流:500mA 电压:40V
SMT扩展库PCB免费打样
私有库下单最高享92折
- 品牌名称
- LRC(乐山无线电)
- 商品型号
- LMBT6427LT1G
- 商品编号
- C171570
- 商品封装
- SOT-23
- 包装方式
- 编带
- 商品毛重
- 0.031克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 达林顿管 | |
| 类型 | NPN | |
| 集射极击穿电压(Vceo) | 40V | |
| 集电极电流(Ic) | 500mA | |
| 耗散功率(Pd) | 225mW；300mW | |
| 集电极截止电流(Icbo) | 50nA | |
| 集射极饱和电压(VCE(sat)) | 1.2V；1.5V |
| 属性 | 参数值 | |
|---|---|---|
| 直流电流增益(hFE) | - | |
| 特征频率(fT) | - | |
| 射基极击穿电压(Vebo) | 12V | |
| 基极-发射极饱和电压(VBE(sat)) | 2V | |
| 基极-发射极导通电压(VBE(on)) | 1.75V | |
| 工作温度 | - |
商品特性
- Product materials comply with RoHS requirements.
- The S prefix is suitable for automotive and other applications that require unique site and control change requirements; it meets the AEC - Q101 standard and has PPAP capabilities.
