- 引脚图
温馨提醒：图片仅供参考，商品以实物为准

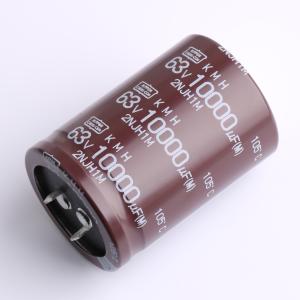

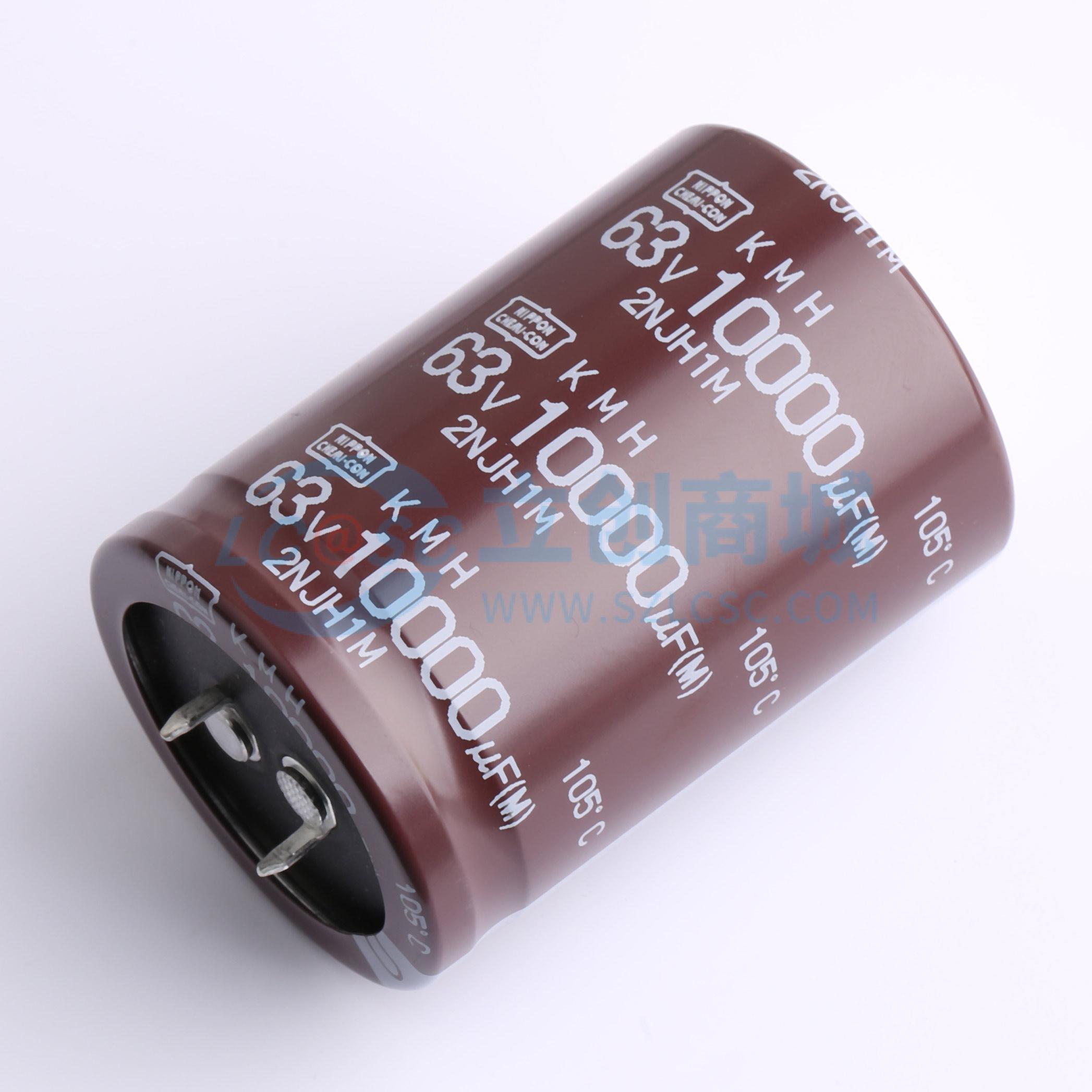

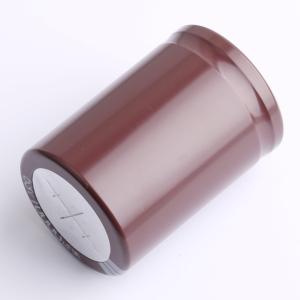

EKMH630VSN103MA50S
10000uF ±20% 63V
SMT扩展库PCB免费打样
私有库下单最高享92折
- 描述
- 具有纹波电流耐久性:在105°C下可耐受2000小时。非耐溶剂类型。符合RoHS2标准
- 品牌名称
- NCC(日本贵弥功)
- 商品型号
- EKMH630VSN103MA50S
- 商品编号
- C1607617
- 商品封装
- 插件,D35xL50mm
- 包装方式
- 箱装
- 商品毛重
- 56克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 牛角型电解电容 | |
| 容值 | 10000uF | |
| 精度 | ±20% | |
| 额定电压 | 63V | |
| 脚间距 | 10mm | |
| 等效串联电阻(ESR) | 25mΩ@120Hz |
| 属性 | 参数值 | |
|---|---|---|
| 纹波电流 | 5.28A@100kHz | |
| 电容体直径 | 35mm | |
| 电容体长度 | 50mm | |
| 工作寿命 | 2000hrs@105℃ | |
| 工作温度 | -40℃~+105℃ |
