温馨提醒：图片仅供参考，商品以实物为准

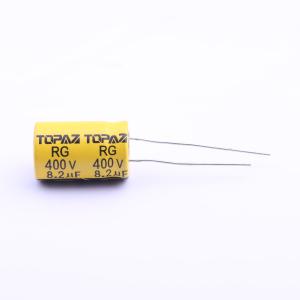

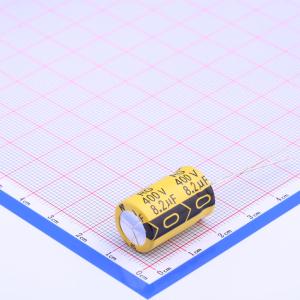

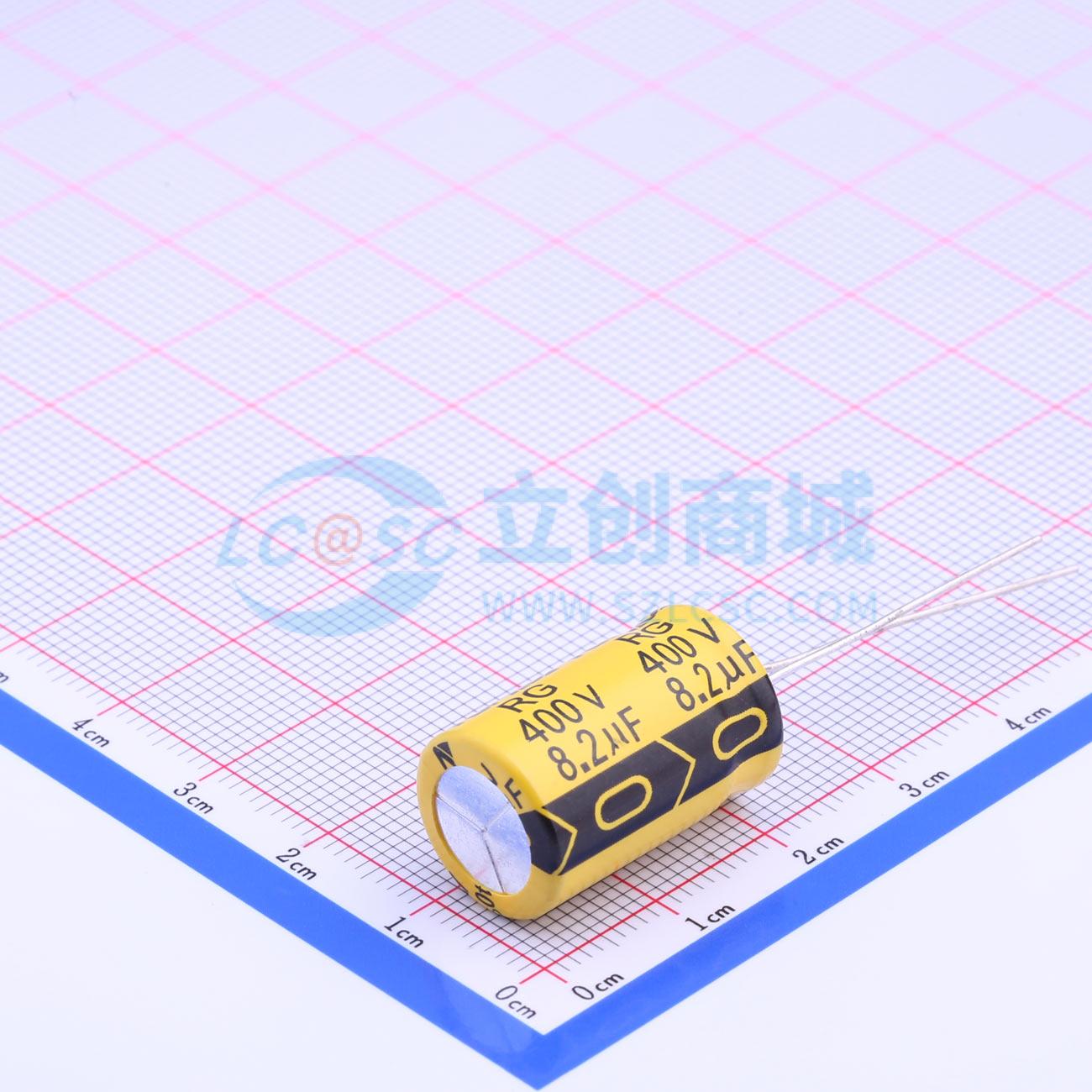

ECRG13218R2M401P00
8.2uF ±20% 400V
SMT扩展库SMT补贴嘉立创PCB免费打样
- 品牌名称
- TOPAZ(黄宝石)
- 商品型号
- ECRG13218R2M401P00
- 商品编号
- C156689
- 商品封装
- 插件,D13xL21mm
- 包装方式
- 袋装
- 商品毛重
- 4.073克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 直插铝电解电容 | |
| 容值 | 8.2uF | |
| 精度 | ±20% | |
| 额定电压 | 400V | |
| 纹波电流 | - |
| 属性 | 参数值 | |
|---|---|---|
| 等效串联电阻(ESR) | - | |
| 脚间距 | 5mm | |
| 电容体直径 | 13mm | |
| 电容体长度 | 21mm | |
| 工作寿命 | 10000hrs@105℃ |
